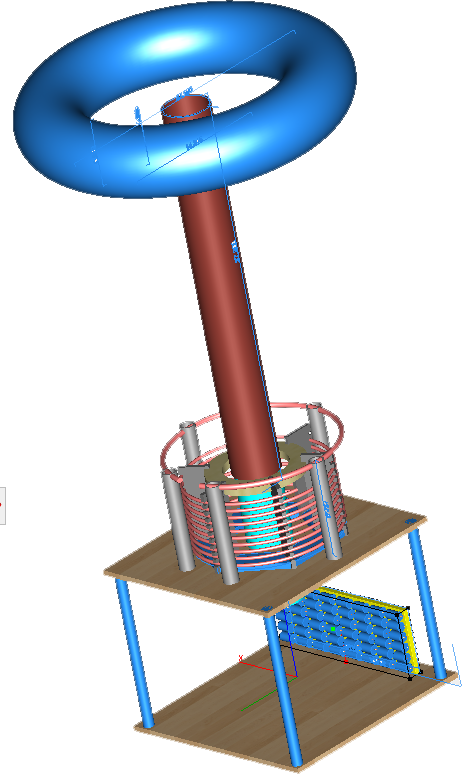

Tesla Coil Specs

Type: Dual resonant solid state (DRSSTC)

Primary: 10 T 8/6mm copper tube, 30 uH

Tank Caps: 6 strings of 8, 0.10 uF 2000V Cornell Dubilier

Secondary:2020 T AWG26 magnet wire, 55 mH

Toroid: 600/160mm Al, 27 pF

H-bridge: IXYS 60N60C2D1 IGBTs
