General description:

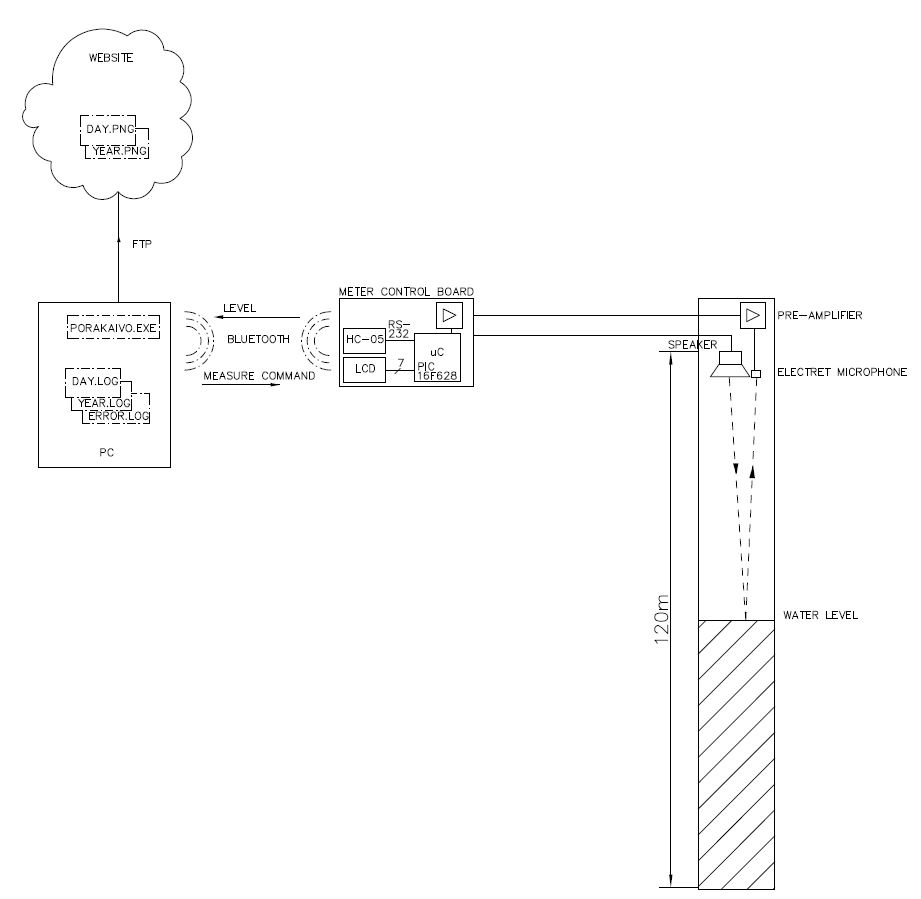

Water level measurement in 120 m deep bore well using sonar principle. Data logging by bluetooth from amplifier/controller to host computer. Statistics data storage and upload to this page. (Data in y-axis in milliseconds now)

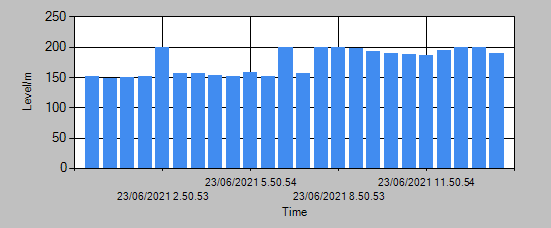

Day log

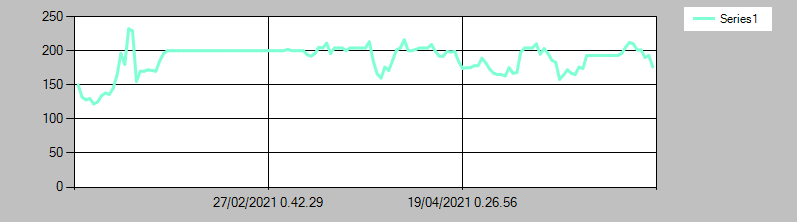

Week log

































































Schematics

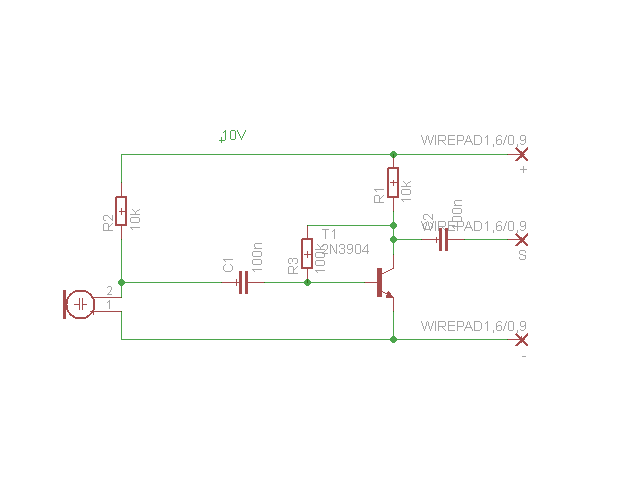

Preamp Schematic

Contol Board Schematic

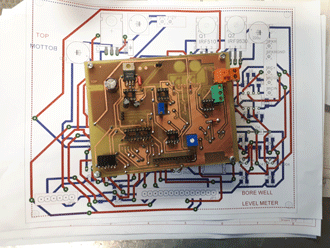

PCBs

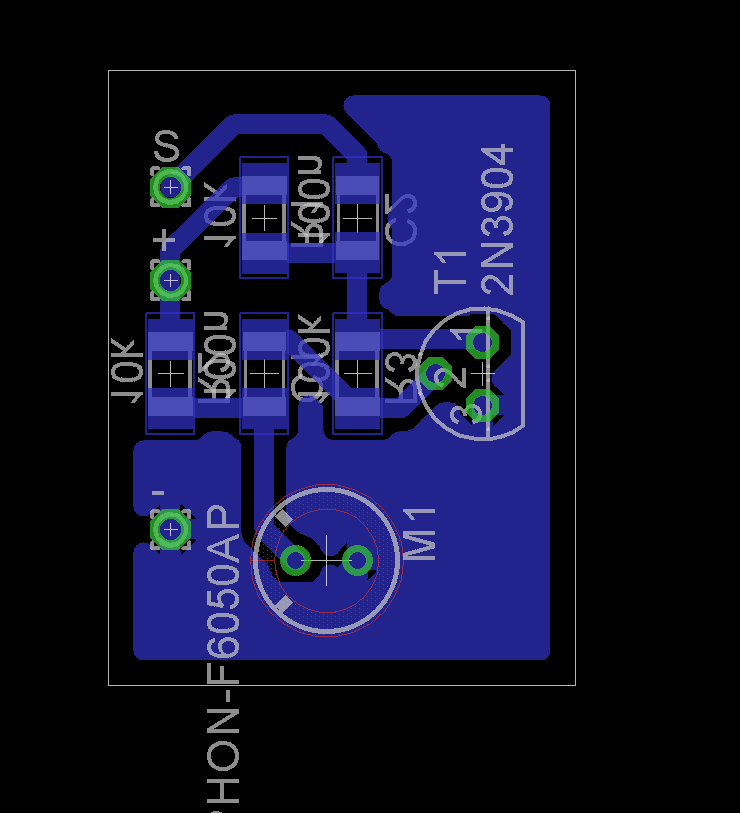

Preamp PCB

Contol Board PCB

Porakaivo.exe GUI
