General description:

Solar panel output depends on the amount of sunshine and panel's temperature. Controller maximizes solar panel output power to charge a battery by continuously measuring the true panel power output and optimizing its voltage and current.



Hardware:

Microcontroller PIC 16F690



Software:

main.c

lcd.c

lcd.h



Documents:

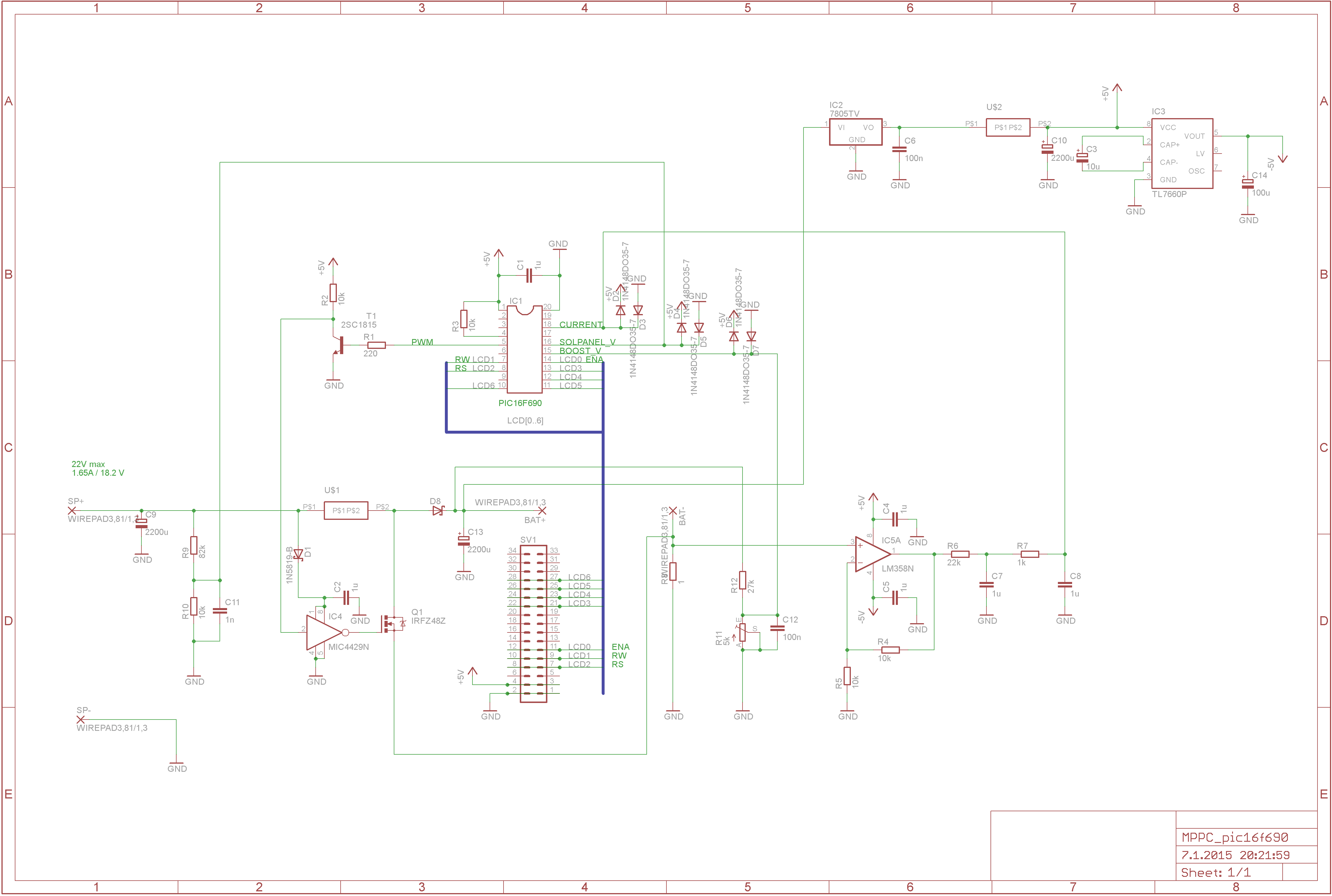

Schematic

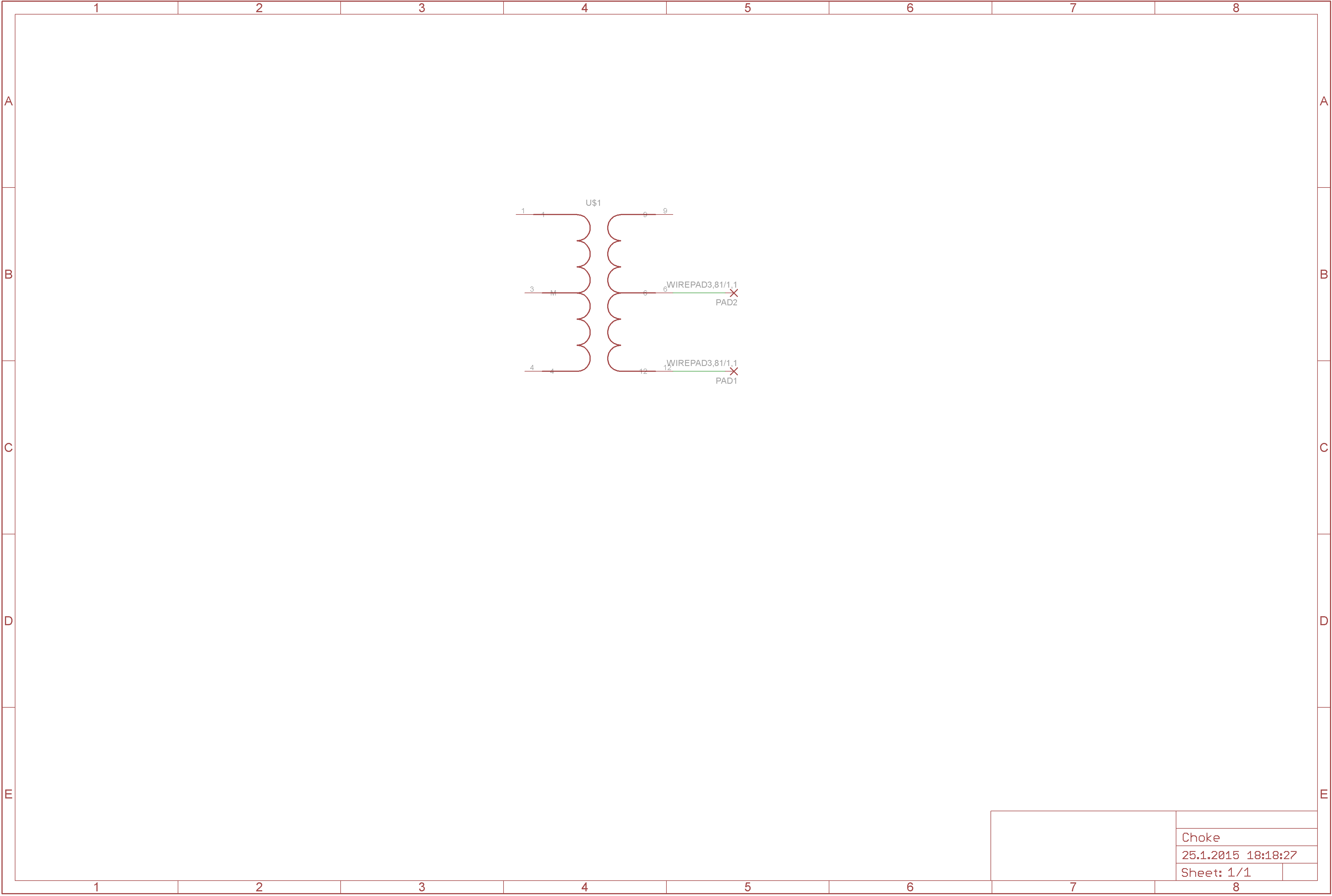

Schematic choke

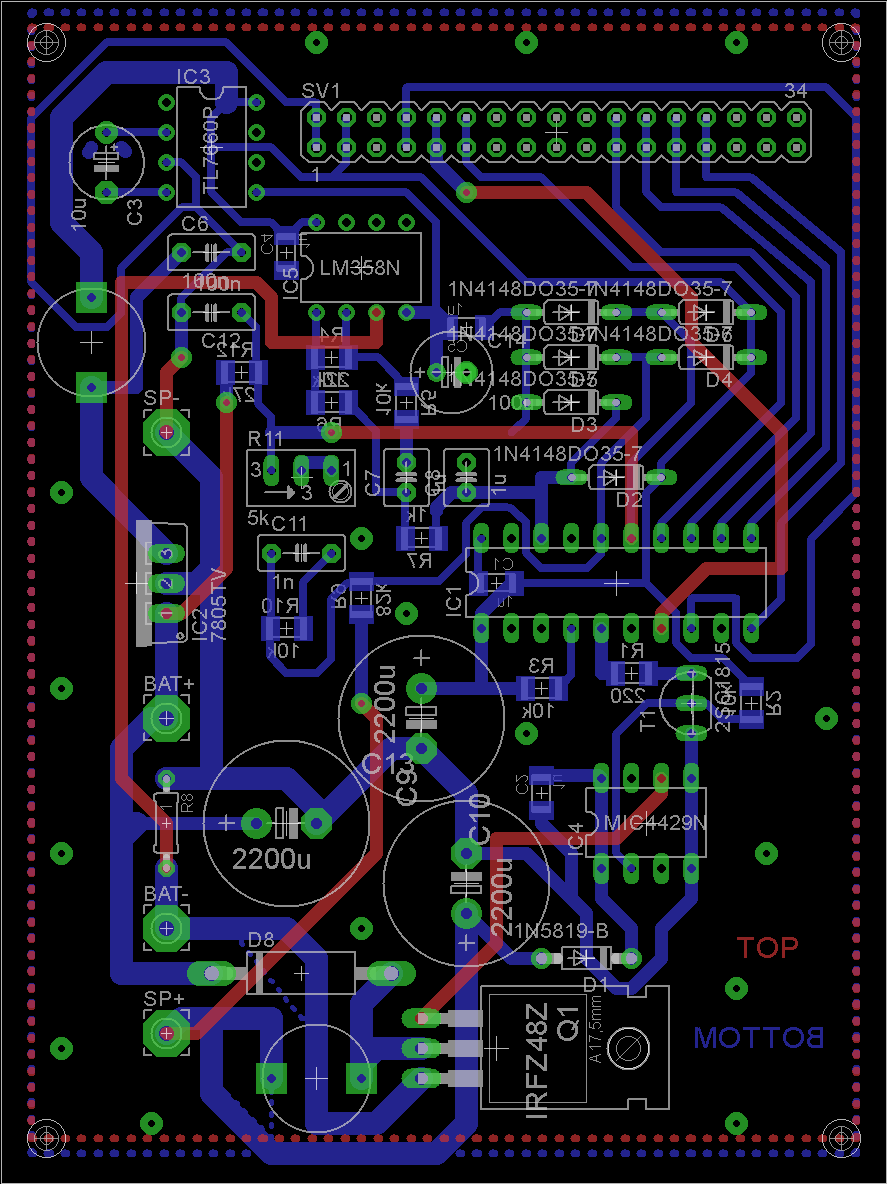

PCB

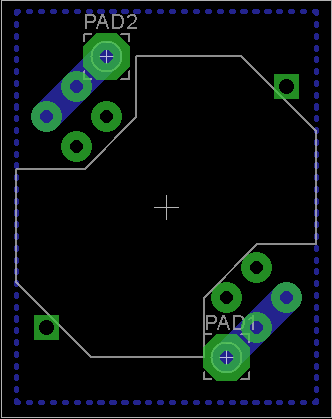

PCB choke
