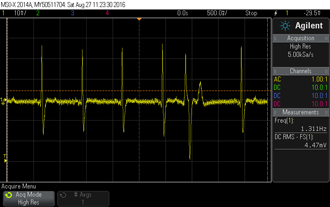

General description: A device to measure heart's voltage dipole magnitude using two electrodes on chest and common mode voltage suppression using a third electrode in the right leg. Display by an oscilloscope.

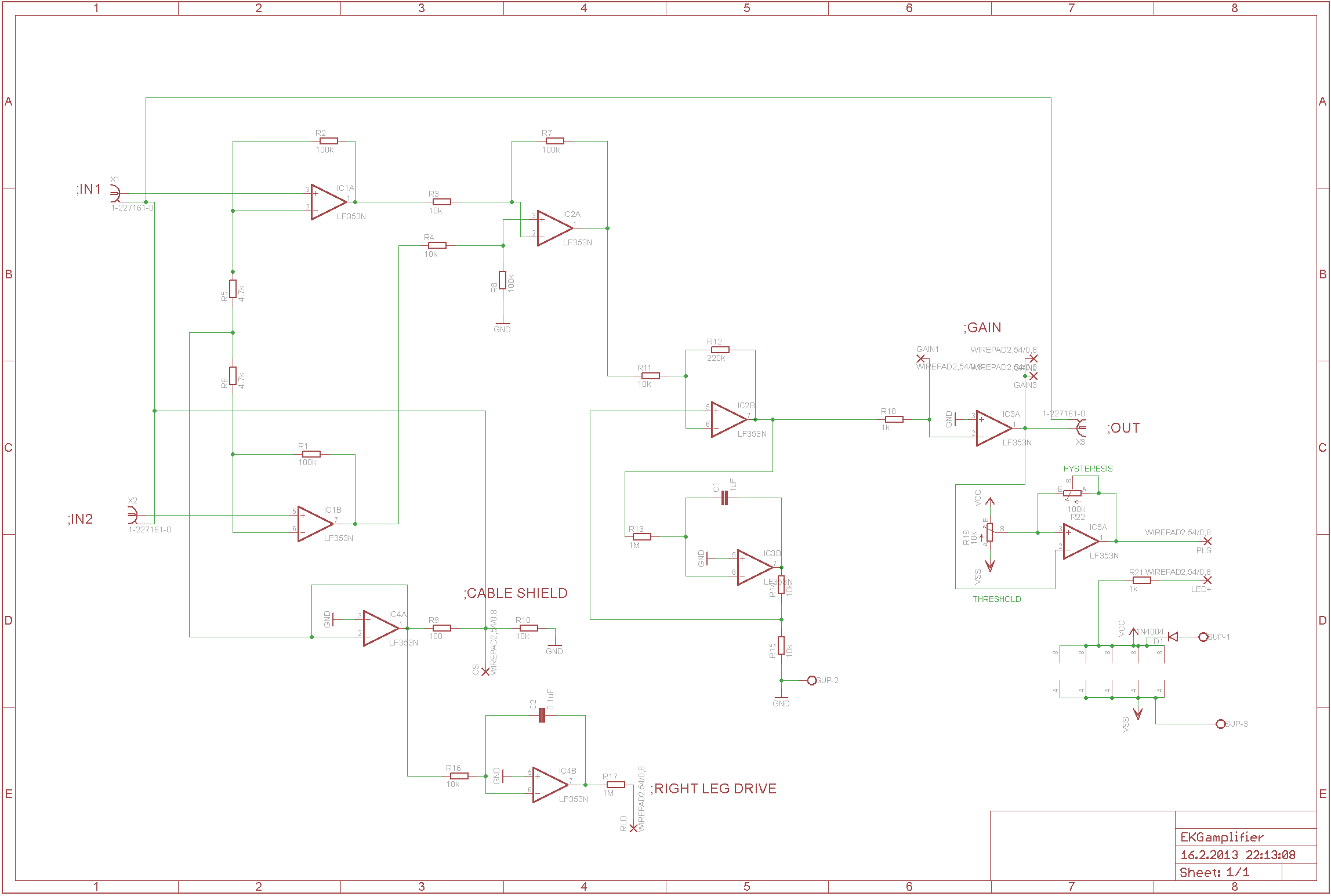

Function description: Amplifier supply by +/- 9V batteries with midpoint tied to amplifier ground. Operational amplifiers IC1A, IC1B and IC2A constitute a combined differential amplifier. IC2A and IC3A

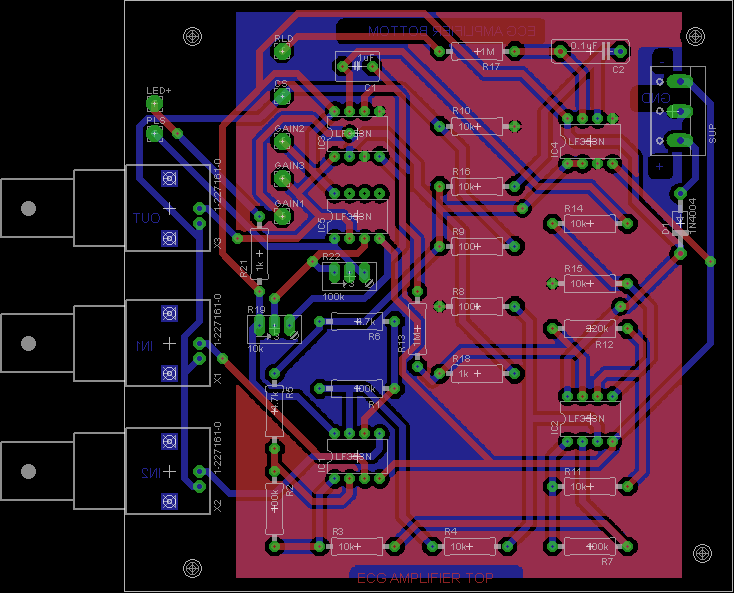

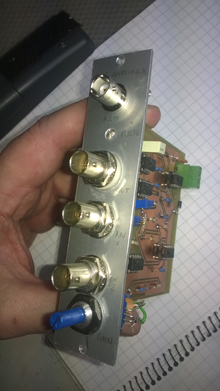

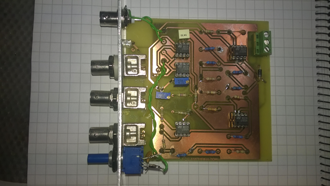

Hardware:
Software: None
Documents:
